EBAM 200

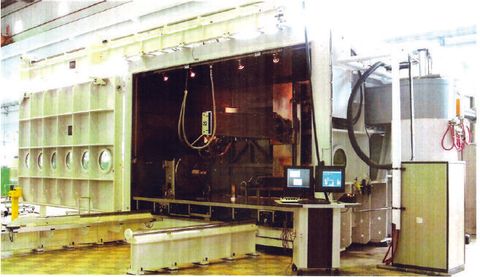

The EBAM® 200 System
Sciaky’s Electron Beam Additive Manufacturing (EBAM) 200 System is one of the largest Additive Manufacturing systems on the market. The EBAM 200 takes advantage of the large format printing capability that EBAM is known for - large metal structures made of high-value metals. The size of the 200 model allows an exceptionally large work envelope for any EBAM application or EB welding project
Data sheet:
Chamber Dimensions: 200" (5080 mm) x 110" (2794 mm) x 110" (2794 mm)
Build Envelope: 160" (4064 mm) wide x 47" (1194 mm) deep x 60" (1524 mm) high
High Efficiency Pumping (up to 1x10-5 Torr ultimate vacuum pressure)
Power Level up to 42 kW–60 kV
Internal Boom Mounted Gun with High Resolution Optics & Servo Gun Tilt Axis
X, Y & Z Servo Axes with Multiple Part Positioner Options
CNC Control: Joint Scanning and Digitizing System
Wirefeed with Motorized Wire Nozzle - Dual wirefeed optional
Electron Beam Additive Manufacturing (EBAM®) Package with IRISS® Closed-Loop Control (CLC)
