EBAM 300

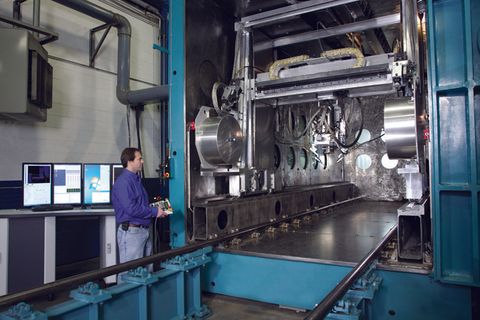

The EBAM® 300 System
Data sheet:
Chamber Dimensions 300” (7620 mm) x 108” (2743 mm) x 132” (3353 mm)
Work Envelope–228” (5791 mm) wide x 48” (1219 mm) deep x 48” (1219 mm) high
Nominal Part Envelope–280” (7112 mm) wide x 48” (1219 mm) deep x 48” (1219 mm) high
High Efficiency Pumping–Chamber Hard Vacuum (1 x 10-4 Torr)
Power Level up to 42 kW–60 kV
Internal Boom Mounted Gun with High Resolution Optics & Servo Gun Tilt Axis
X, Y & Z Servo Axes with Multiple Part Positioner & Dual Wirefeed Options
CNC Control–Joint Scanning and Digitizing System
Wirefeed with Motorized Wire Nozzle
Closed-Loop Control (CLC) technology
